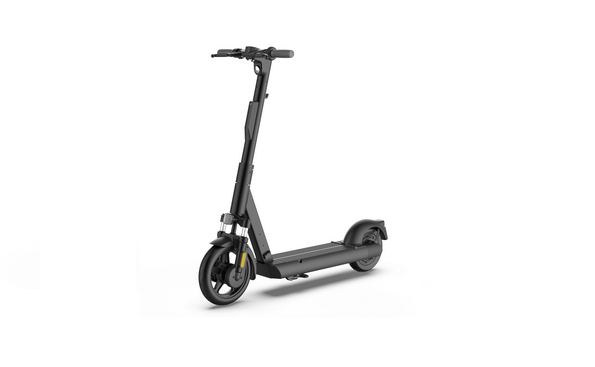

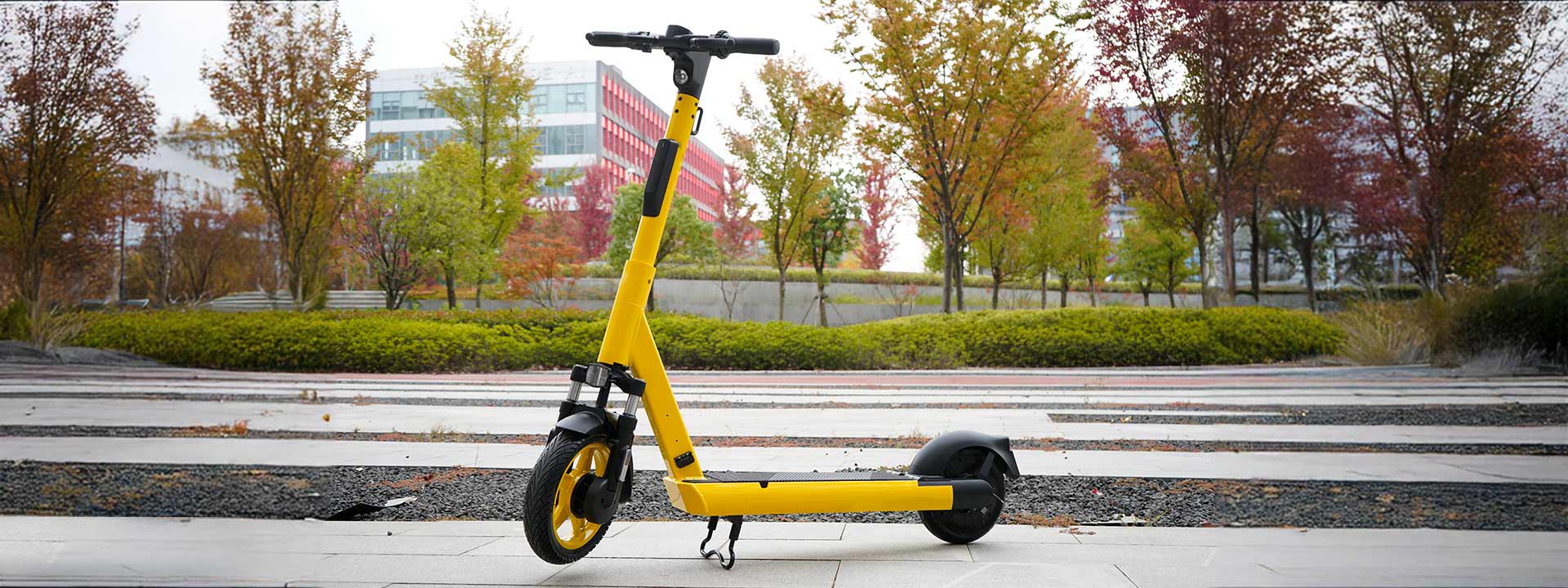

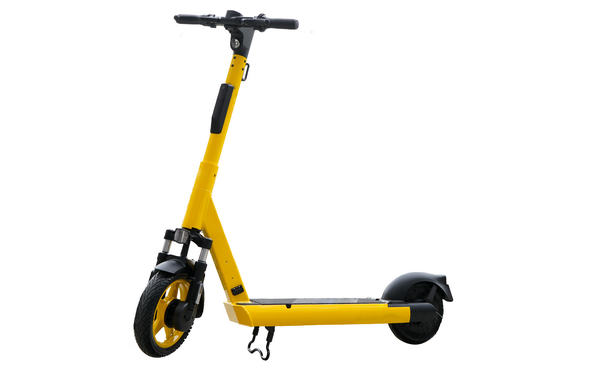

S4

Frame Aircraft-grade Aluminum Alloy, Invisible Wire Design
Dimension ( LxWxH ) 1252x480x1164mm (unfold)
Rider Recommended Age 14+ years
Rider Required Height 120-200cm (3'11" - 6'6")
IP Rating IPX7 for Battery & Controller & IoT & Motor, and All Wateproof Cable Connector
Payload 25~120 kg ( 55~264 lbs )
Max. Climbing Angle 13% (about 9 degree)
Operating Temperature "-10°C ~ 40°C (14 ~ 104°F)
Storage Temperature "-20°C ~ +50°C ( -4°F~122°F )
Battery 36V DC, 16Ah, 576Wh, 18650 Lithium Cells
Typical Mileage Approx. 40 km (24.8 miles)
Charger AC100~240V input 50-60Hz, Output Power 126W (42V3A)
Charging Time 4~5 Hours
Motor Rear Powerful Waterproof Motor, Max Torque 35 N·m
Rated Power 500 W
Max. Power 750 W
Max Speed (Km/h) Approx. 25 km/h (15.5 mph )
Shock Absorber Double Arm Front Shock Absorption
Front & Rear Tire Front 12 inch & Rear 10 inch, Solid Tire
Front Light 1W Automatic Headlight with Sensor
Rear Light Rear Taillight
Brake Mode Front & Rear Drum Brake and Rear EABS
Battery Management System Over-heating, short circuit, over-current, over-charge, abnormal temperature protection
Net Weight Approx. 25 kg ( 55 lbs )
Container Loading 45 pieces/20'GP, 200 pieces/40'HQ
